DC Circuits
Parallel Circuits

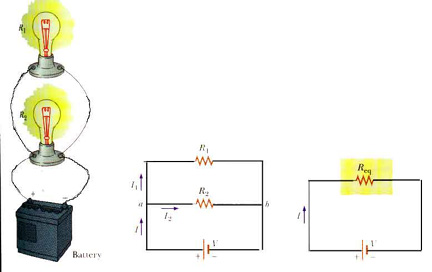

Resistors being in parallel means their ends are connected by a conductor, making their ends at a common potential. That means exactly the same potential difference is across each of the resistors that are connected in parallel.
Redrawing a circuit is often a useful step in understanding it.
Consider this string of Christmas lights that are connected in parallel. What happens if one of the bulbs burns out or is removed?
